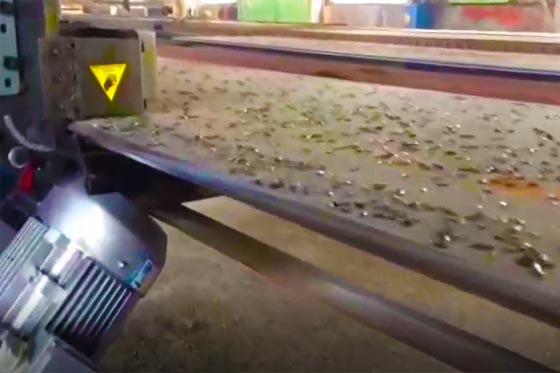

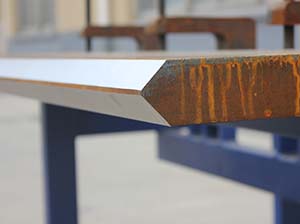

Processing plate bevel needn't turn plate, can be processing bevel  type "K, feed speed 0~1500mm/min

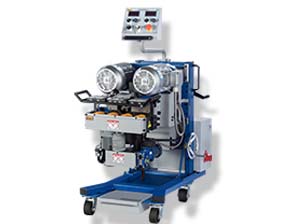

GMMA-80R Edge milling machine technical parameters

Power Supply：AC 380V 50HZ

Total Power：4920W

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~80mm

Clamp Width：＞80mm( ot processing edge)

Processing Length：＞300mm

Bevel Angle：0°~60°Adjustable

Single Bevel Width：0~20mm（According to bevel angle and material）

Bevel Width：0~70mm（Change according to bevel angle）

Cutter Plate：φ80 mm

Cutter Qty：6pcs

Worktable Height：800~810mm

Travel Space：1200*800mm

Net Weight：310kg

Gross Weight：370kg

Package Size：1100*630*1340mm
