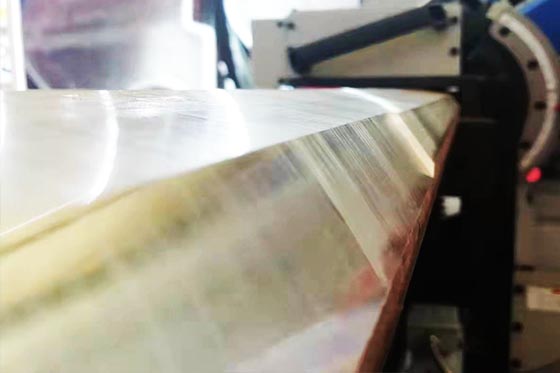

Double spindle toghter processing plate bevel, cold cutting, feed speed:0~1500mm/min

GMMA-100K Edge milling machine power data:
Power Supply：AC 380V 50HZ

Total Power：6480W

Cutting Power：2*3000W

Feed Motor：2*180W

GMMA-100K Edge milling machine technical parameters

Spindle Speed：500~1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~100mm

Clamp Width：≥100mm (Not processing edge)

Processing Length：≥400mm

Single Bevel Width：0~20mm （Change according to material and angle）

Above Angle：0°~90° Adjustable

Under Angle：0°~-45°Adjustable

Above Bevel Width：0~60mm（Change according to bevel angle）

Under Bevel Width：0~45mm（Change according to bevel angle）

Cutter Plate：2*φ63mm

Cutter Qty：2*6pcs

Worktable Height：810~870mm

Travel Space：800*800mm

Net Weight：395kg

Gross Weight：460kg

Package Size：950*1180*1430mm
