Feed speed 0~4m/mikn, Double spindle toghter processing R3, cold cutting.

GCM-R3TD Chamfered edge machine powe Technical parameters:

Power Supply：AC380V 50HZ

Gas Source：0.5~0.8Mpa

Total Power：1900W

Spindle Speed：2800r/min

GCM-R3TD Chamfered edge machine processing Technical parameters

Clamping Thickness：8~60mm

Clamping Width:＞100mm

Processing Length：＞300mm

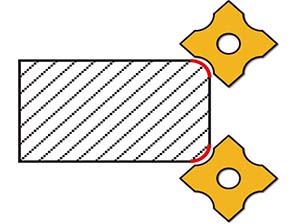

Processing Capacity：C2/C3/R3/R2

Cutter Diameter：2*φ60mm

Cutter Qty：2*3pcs

Worktable Height：800~860mm

Area Covered：1200*900mm
