servo drive，HMI edge milling machine feed speed 200~2000mm/min， AL material processing speed can be 2500mm/min

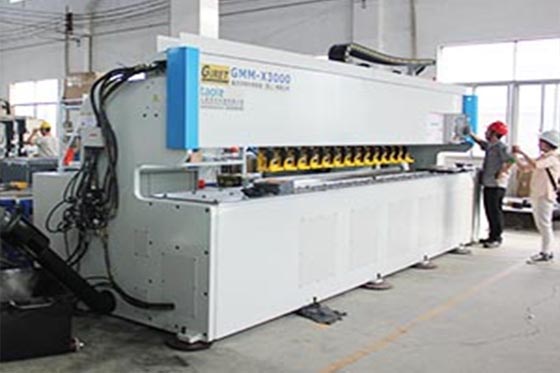

GMM-X3000 CNC edge milling machine / Bench type edge milling machine introduction:

This model of equipment is a high-end intelligent CNC edge milling machine, which is manufactured by GIRET brand with accumulated experience. The effective machining stroke of GMM-X3000 is 3000mm. It adopts double spindle simultaneous cutting operation or single spindle independent operation, which provides strong technical support for customers to obtain more groove types.

Main power parameters of GMM-X3000 CNC edge milling machine /Bench type edge milling machine:

Power supply: AC380V 50Hz (other voltages can be customized)

Total power: 28kw

Operating power: 18kw

Touch screen size: 15 inches

Control system: GIRETV 1.1

Processing performance of GMM-X3000 CNC edge milling machine / CNC beveling machine:

Groove angle: upper spindle groove angle 0 ~ 85 ° (no step adjustment), supporting 90 degrees of step groove

Lower spindle groove angle. 0 ~ 60 ° (no step adjustment)

Groove width: upper spindle 0 ~ 85 degrees, groove width 0 ~ 100mm

90degree step groove width of upper main shaft. 0 ~ 40mm

The groove width of the lower spindle is 0 ~ 100mm, which can be adjusted arbitrarily

Groove processing speed: 0 ~ 1500mm / min (according to material change)

Thickness of processed groove plate: 6 ~ 80mm (thicker can be customized)

Length of processed groove plate: > 150mm (measured length, shorter can be proofed)

Effective groove processing stroke: 3000mm

Processing material: carbon steel, stainless steel, aluminum alloy and other metal materials

Processing groove style: V type / K type / Y type / X type / U type / L type / 0 degree trimming

Groove angle accuracy: ± 0.5 degrees

Groove straightness accuracy: ± 0.5mm

Groove width accuracy: ± 0.5mm

Operation mode: HMI, human-computer interaction, touch screen control

Gmm-x3000 CNC edge milling machine / CNC beveling machine product features:

1. PLC system control, the system is more stable;

2. HMI human-computer interaction interface, touch screen operation, intelligent beveling machine, which can be operated by ordinary workers;

3. Safer operation: the control panel is low-voltage, and the normal operation is far away from the moving components;

4. There is no step adjustment for the angle of the uphill opening of 0 ~ 85 degrees, and there is no step adjustment for the angle of the downhill opening of 0 ~ 60 degrees;

5. The accuracy of groove angle shall reach ± 0.5 degrees;

6. The straightness of processing groove shall reach the accuracy of ± 0.5mm;

7. Equipped with electrical cooling system;

8. Equipped with automatic chip removal system, cleaner;

9. More environmental protection, no cutting fluid and low noise;

10. Processing data can be stored and called at any time;

11. The human-computer interface diagram is intuitive;

12. Misoperation prevention system, automatic shielding beyond the limit;

13. The first construction starts the automatic operation groove program;

14. No manual calculation of processing data is required for groove processing, and the system automatically cuts in layers;

15. It supports two language versions, Chinese / English by default, and the language can be customized according to customer requirements;

16. Cold cutting, no oxidation deformation on the surface;

17. Real time monitoring of system input and output status;
