Beveling & Edge Milling Edge For Heavy Tasks，Pipe Diameter: 300~1500mm,OD Bevel Angle: 0~80 degrees,ID Bevel Angle: 0~80 degrees, OD Bevel Width: Max.120mm, Bevel type: V/Y, K/X, U/J

GPM-1500 Pipe Beveling & Edge Milling machine  intrroduction:

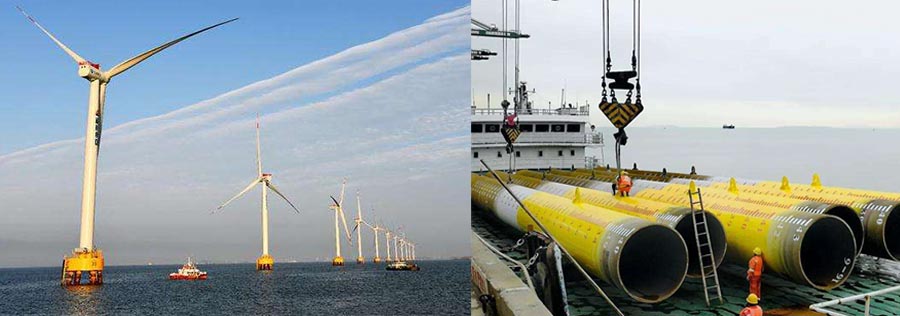

The pipe beveling machine can be beveling & Edge Milling Edge For Heavy Tasks, Mainly used for pressure vessels， Large pipeline。

GPM-1500 Pipe Beveling & Edge Milling machine Technical Date:

Power Supply: AC380V 50HZ or AC415V 60HZ

Total Power: 5500W

Spindle Speed: 0~1050rmin

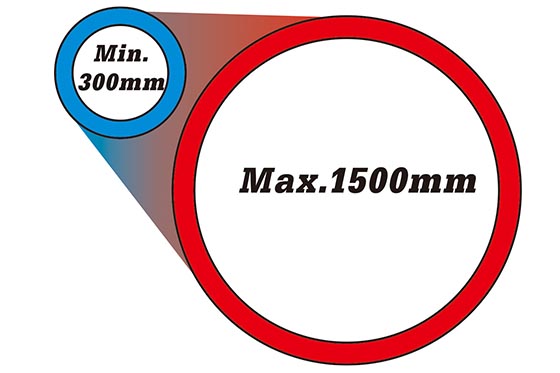

Pipe Diameter: 300~1500mm（11~59”）

Pipe Wall Thickness: Min.5mm，Max.100mm

Pipe Length: >400mm

OD Bevel Angle: 0~80 degrees

ID Bevel Angle: 0~80 degrees

OD Bevel Width: Max.120mm

ID Bevel Width: Max.45mm

Bevel type: V/Y, K/X, U/J

Edge Milling: Yes

Machine Size: L2450*W 1450*H2700mm

Bearing: 10000kg

Net Weight: 5300kg
