Processing speed: 0~6000mm/min， Chamfered edge machine, rounding machine

About of GCM-R3TD rounding machine:

This model has upgraded the spindle of the chamfering machine on the basis of the original double-head steel plate chamfering machine product. It adopts dual flexible spindles for simultaneous cutting, making the chamfering process more stable, and the processing speed can reach 4 meters per minute. Compared with the traditional manual chamfering, it saves more cutting tools, significantly reduces the labor intensity of workers, and at the same time reduces the potential operation risks caused by turning over the steel plates. The processed R fillet meets the PSPC painting standard and is suitable for fields such as shipbuilding, bridge construction, and offshore platforms.

NEW GCM-R3TD rounding machine Powe Technical parameters:

Power Supply：AC380V 50HZ

Total Power：24000W

Spindle Power: 2*1100W

NEW GCM-R3TD chamfered edge machine Processing Technical parameters

Clamping Thickness：8~60mm

Clamping Width:＞100mm

Processing Length：＞300mm

Processing Capacity：C2/C3/R3/R2

Cutter Diameter：2*φ80mm

Cutter Qty：2*6pcs

Worktable Height：840~900mm

Area Covered：1480*1140mm

NEW GCM-R3TD rounding machine feature:

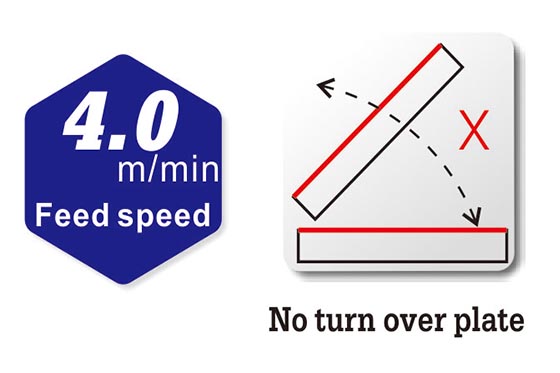

Efficient processing speed 0~6.0m/min

Reduce labor intensity, 1machine=4-6 persons

Once feed can be finished both edges

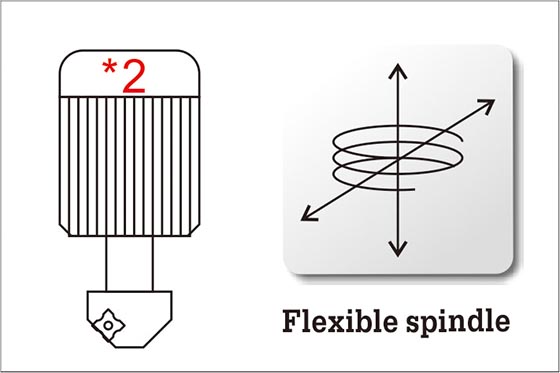

Flexible cutting spindle, saving blade

Even R edge, No processing stress

Cold cutting, Processed edge Ra 3.2~6.3

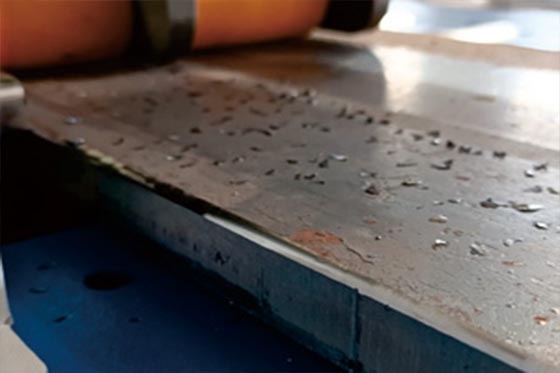

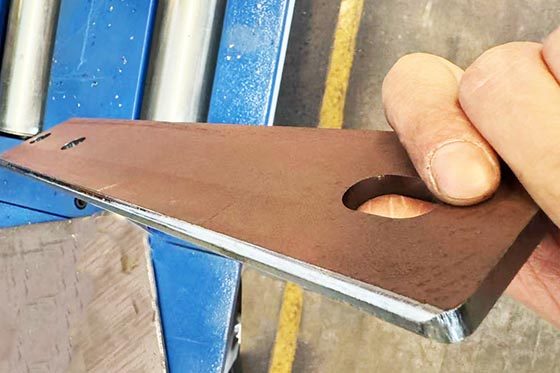

NEW GCM-R3TD rounding machine processing case:
