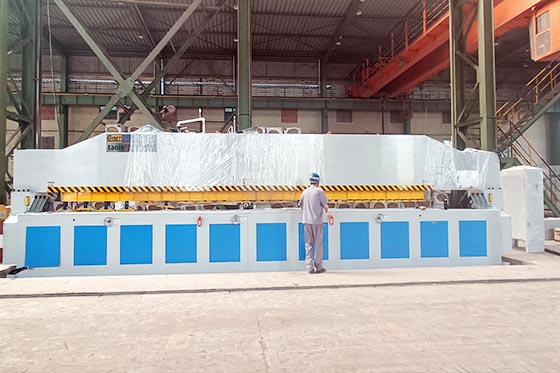

GMM-VS9000 CNC HMI edge milling machien  Processing travelled; 9000mm

GMM-VS9000   CNC edge milling machine technical data:

Bevel angle

Lower spindle bbevel  angle:0 ~ 60 ° (no step adjustment)

Bevel width:0~80mm

Feed speed:0 ~ 2000mm / min (according to material change)

Thickness plate:6 ~ 80mm (thicker can be customized)

Length plate:> 150mm (measured length, shorter can be proofed)

Processing travelled; 9000mm

Processing material: Carbon steel, stainless steel, aluminum alloy and other metal materials

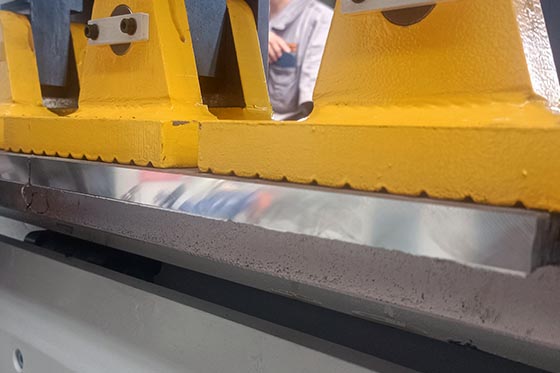

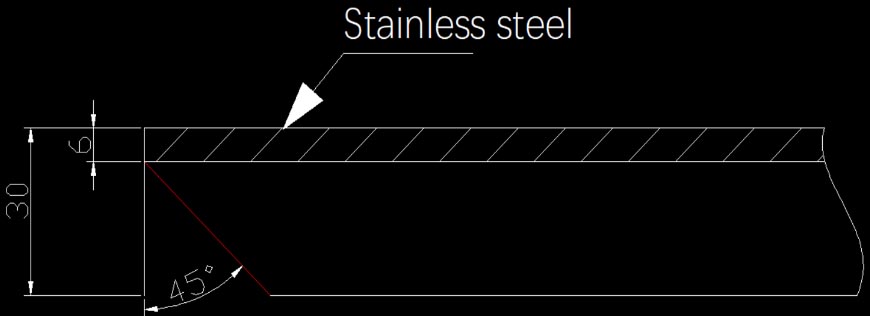

Machining bevel style: V type / Y type / 0 degree

Bevel angle accuracy: ± 0.5 degrees

Bevel straightness accuracy: ±0.5mm

Bevel width accuracy : ±0.5mm

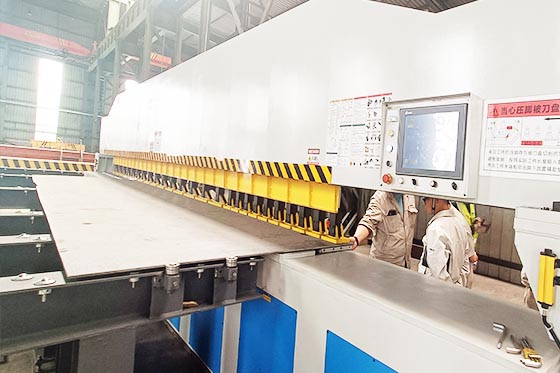

Operation mode: HMI, human-computer interaction, touch screen control
