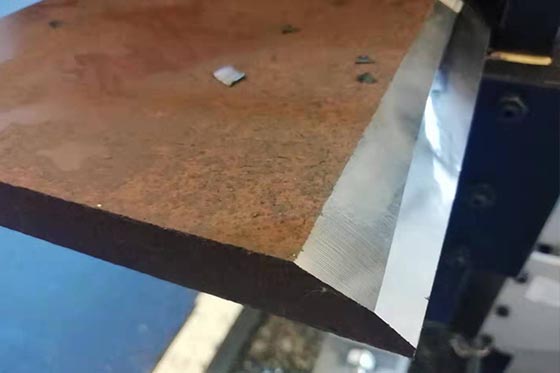

Prcoessing bevel type: "k, feed speed: 0~1500mm/min, bevel angle: 10~60degrees

GMMA-60R Edge milling machine power data:

Power Supply：AC 380V 50HZ

Total Power：3400W

Spindle Power: 4KW

Feed  Power: 400W

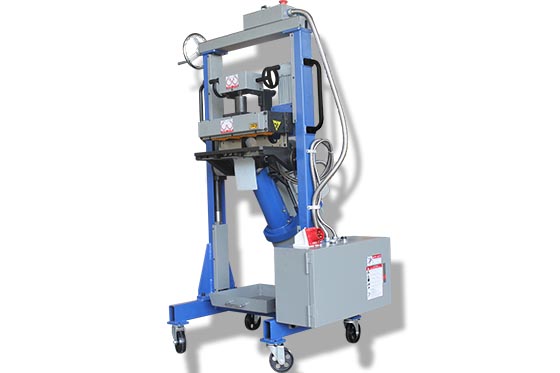

GMMA-60R Plate edge milling machine technical data:

Spindle Speed： 1050r/min

Feed Speed：0~1500mm/min（According to bevel depth and material）

Clamp Thickness：6~60mm

Clamp Width：＞80mm (Not processing edge)

Processing Length：＞300mm

Bevel Angle：±10°~60°Adjustable

Single Bevel Width：0~20mm（According to bevel angle and material）

Bevel Width：0~55mm（Change according to bevel angle）

Cutter Plate：φ63 mm

Cutter Qty：6pcs

Worktable Height：730~760mm

Travel Space：800*800mm

Net Weight：245kg

Gross Weight：300kg

Package Size：860*1100*1500mm
