CNCPipe BevelingMachine、CNC Pipelines Beveling Machine

Product Introduction of CNC Pipe Beveling Machine

Used for bevel & square operation of steel plates in plate manufacturing plants, pressure vessels, ship manufacturing, 2 sets of machine for non rotating plate to complete 4 sided processing, processing speed is 0~4m/min.

Technical Parameters of CNC Pipe Beveling Machine

Power Supply：AC380V 50HZ

Total Power：-7000W

Pipe Thickness：1~22mm

Pipe Diameter：φ33~325mm

Pipe Length：≥300mm

Outer Bevel Angle：30/37.5/76°degree

Inner Bevel Angle：15°/25°

Outer Bevel Width：0~20mm

Inner Bevel Width：0~15mm

Bevel Type：V/Y, K/X, U/J

Milling Pipe Face：Yes

Other Capacity：excessive beveling

Processing Material：AL,SS,Carbon

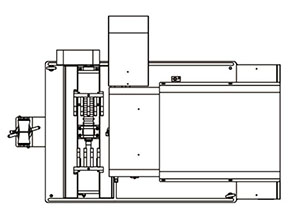

Machine Size：1950*1400*1450mm

Product Features of CNC Pipe Beveling Machine：

PLC control, accuracy±0.5mm

HMI Operation, Needn't G code

Don't replace clamp tool

Cold cutting,No-oxidation & deformation

Bevel surface finished Ra3.2~6.3

Bevel depth accuracy±0.5mm

Variety bevel type and material

Easyoperation

Safe operation, 24V control panel

Spindle speed and feed speed are adjustable
