    GPM-180 Table pipe beveling machine

    Pipe bevelling machine, processing pipe DIA= 20~180mm， bevelling width: 0~15mm

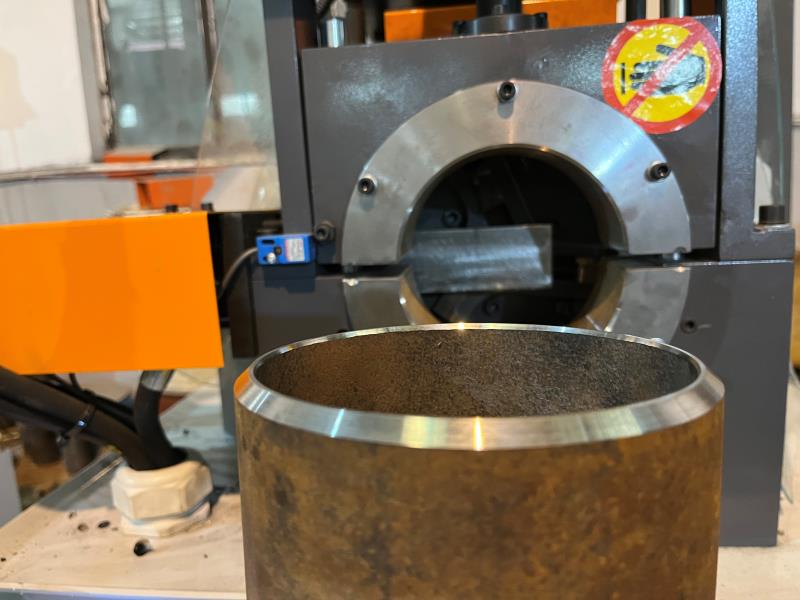

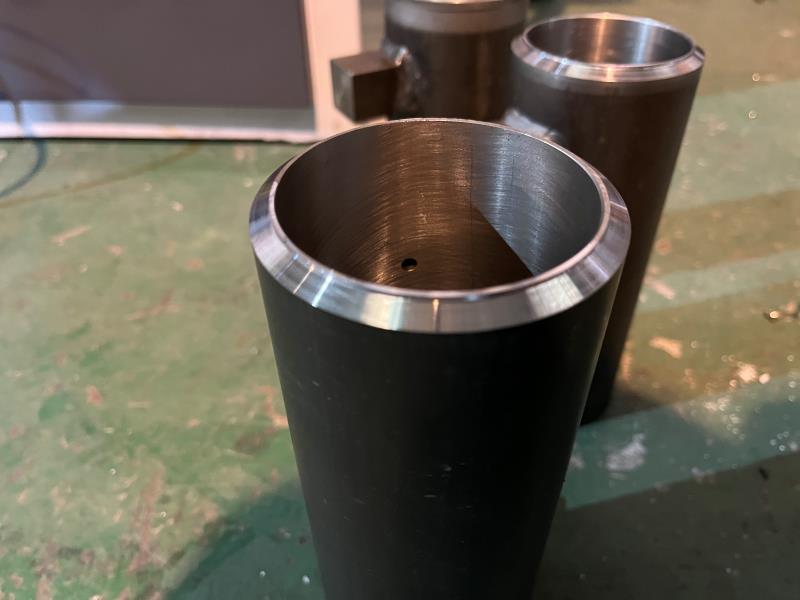

    This model of pipe beveling machine can process two types of workpieces, namely pipes and bar stock. It is mainly used for beveling various materials such as carbon steel, stainless steel, and chromium alloys. The diameter of the pipes it can process ranges from φ20 to 180mm. It can create V/Y, K/X, and U/J - shaped bevels, and features easy operation, standard angles, and smooth surfaces.


    Product Performance of GPM - 180 Fast Pipe Beveling Machine

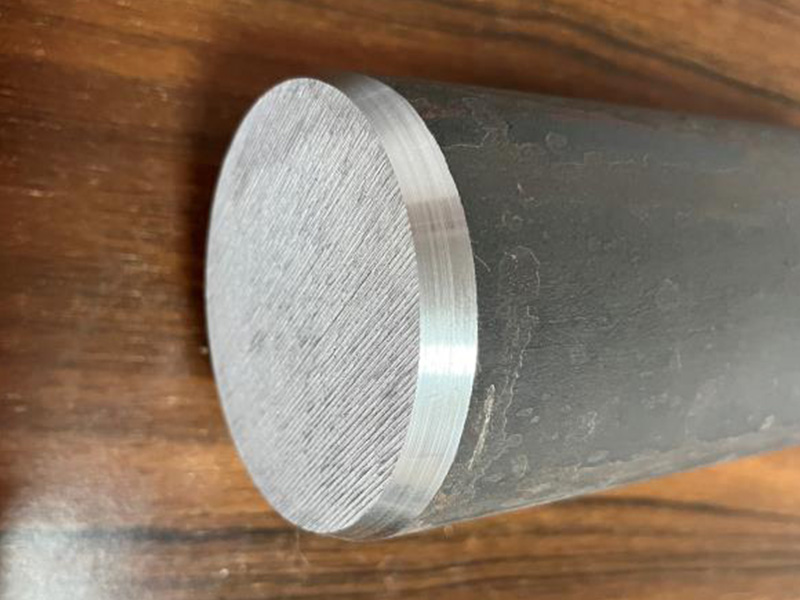

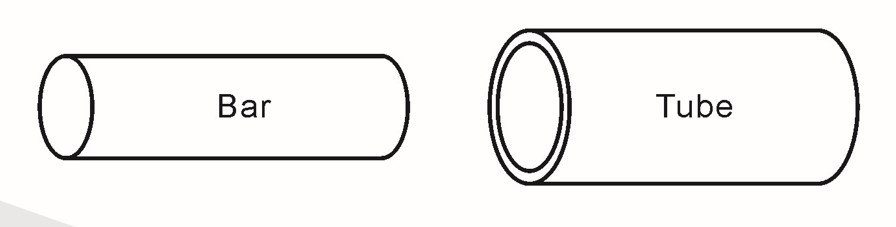

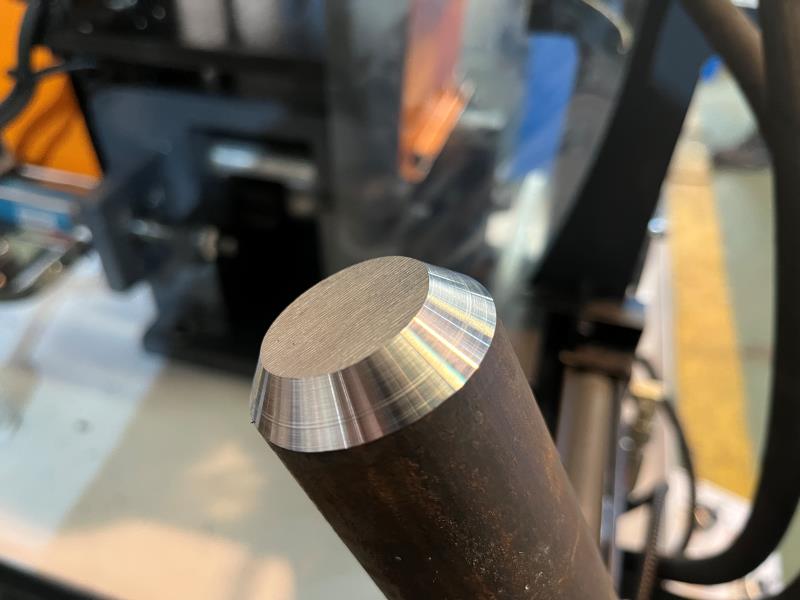

    2 kinds of pipe: tube and bar can be processed.

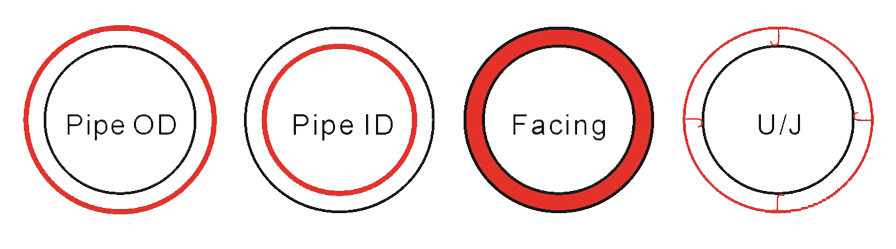

    capacity: Pipe ID,Pipe OD, Facing, U/J bevel.


    Bevelling speed: 3s to 6s can be processed.


    Product Introduction of GPM - 180 Fast Pipe Beveling Machine：

    Power Supply：AC380V 50HZ

    Total Power：5500W

    Pipe Thickness：1-15mm

    Pipe Diameter：20-180mm

    Pipe Length：≥50mm

    Outer Bevel Angle：30°/37.5°/45°

    Inner Bevel Angle：25°/30°

    Outer Bevel Width：0~15mm

    Inner Bevel Width：0~15mm

    Bevel Type：V/Y,K/X,U/J

    Milling Pipe Face：Yes

    Machine Size：1000*1000*1400mm
